Description, STM Discovery Kit SKU: M24LR-DISCOVERY
 DatasheetCheck Datasheet

M24LR-DISCOVERY, Discovery kit for M24LR04E Dual Interface EEPROM with energy harvesting


The M24LR-DISCOVERY kit helps you evaluate the M24LRXX-E Dual Interface EEPROM that features an energy harvesting analog output, as well as a user-configurable digital output.

The M24LR-DISCOVERY kit is delivered with a battery-less M24LR board that can be powered by RFID readers or NFC phones supporting the ISO/IEC15693 protocol. It is based on an M24LR04E-R I²C - ISO/IEC15693 Dual Interface EEPROM, an 8-bit STM8L152C6T6 ultralow power microcontroller, and includes an STTS751 temperature sensor, a 24-segment LCD, and 2 push buttons.

The M24LR-DISCOVERY kit also comes with an USB RF transceiver demonstration board that includes the CR95HF 13.56-MHz multi-protocol contactless transceiver. It is based on a 32-bit, STM32F103CBT6 performance line microcontroller and is connected to a computer host via its USB connector.

Key Features

  • M24LR board
    • M24LR04E-R, a 4-Kbit EEPROM with an I²C-ISO/IEC 15693 dual interface and an
      energy harvesting analog output (Vout pin) and a user-configurable digital output (RF
      Write-in-progress or Busy pin) in an SO8N package
    • 9-turn, 13.56-MHz etched antenna (20mm x 40mm) for RF powering and
    • STM8L152C6T6, 8-bit ultralow power microcontroller with up to 32 Kbytes of Flash
      memory, 2 Kbytes of RAM, and 1 Kbyte of Data EEPROM in a 48-pin LQFP package
    • STTS751 I²C low power temperature sensor
    • 28-pin LCD on DIP24 socket (24 segments, 4 commons)
    • Two push buttons (User and Reset)
    • 4-pin connector (CN1) for STM8L programming and debug (SWIM)
  • RF transceiver board
    • CR95HF, a 13.56-MHz multi-protocol contactless transceiver IC with SPI and UART
      serial access communication
    • 2-turn, 13.56-MHz etched loop antenna (47mm x 34 mm) with associated tuning circuit
      and lowpass filter
    • STM32F103CBT6, a 32-bit microcontroller with 128 Kbytes of Flash memory and USB
      interface in a 48-pin LQFP package
    • USB connector
    • 20-pin JTAG connector for STM32 programming and debugging
    • 1 push button (Reset)


M24LR-DISCOVERY evaluation development board

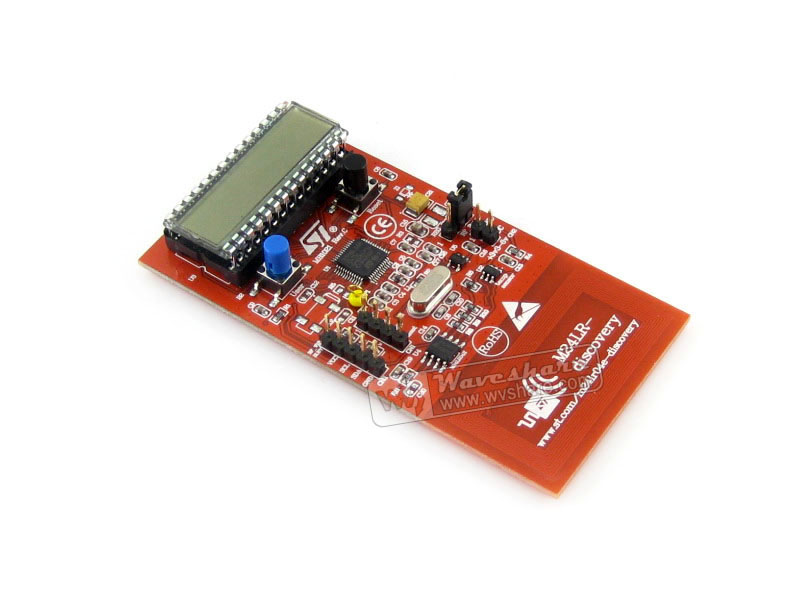

M24LR board Development Board
M24LR-DISCOVERY evaluation development board

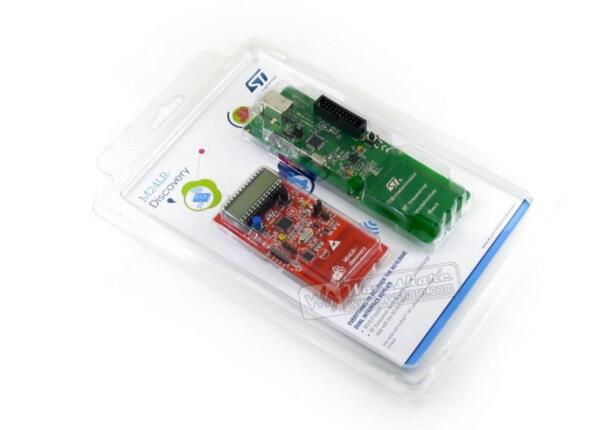

M24LR board Packaging Back View
M24LR-DISCOVERY evaluation development board

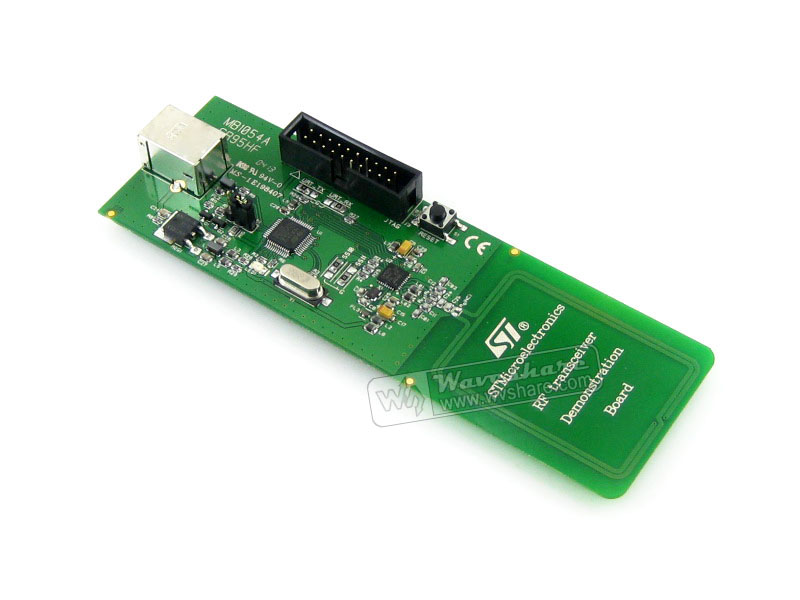

RF transceiver board Development Board
M24LR-DISCOVERY evaluation development board
RF transceiver board Development Board Back View

What's Onboard

M24LR board

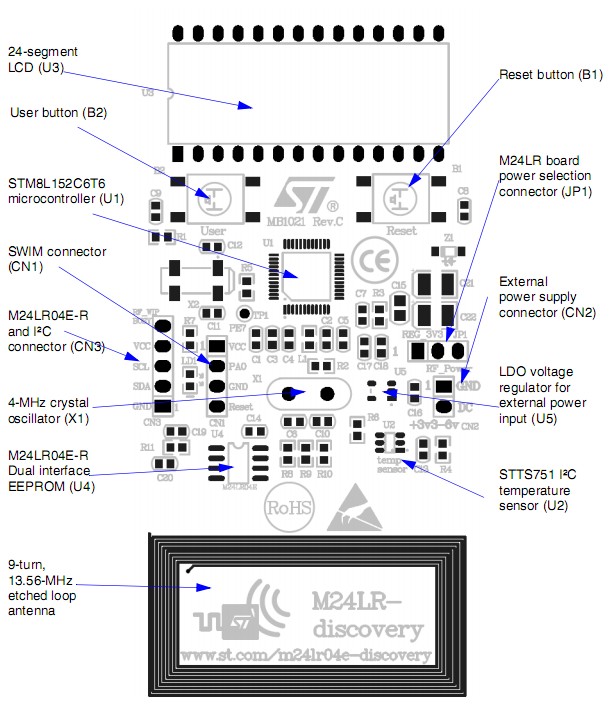

M24LR BOARD what's onboard
RF transceiver board

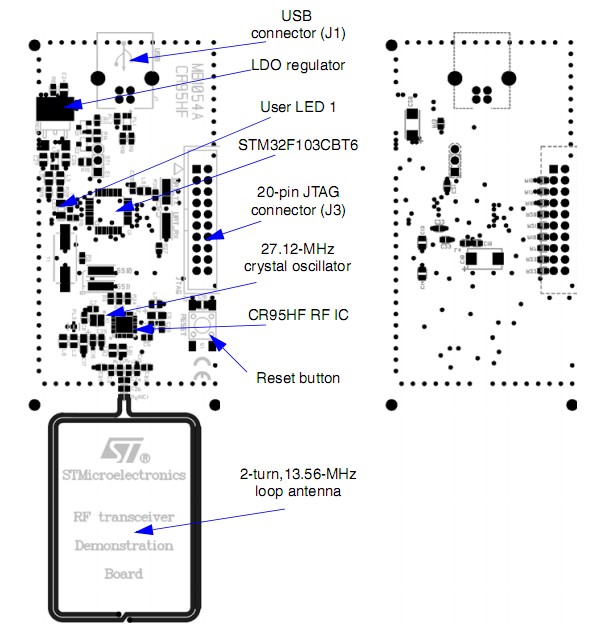

RF transceiver board what's onboard

Design Support

For Technical Documentation, Software & Development Tools, view the M24LR-DISCOVERY official page on to get more information:
