Logic chip

Product Details

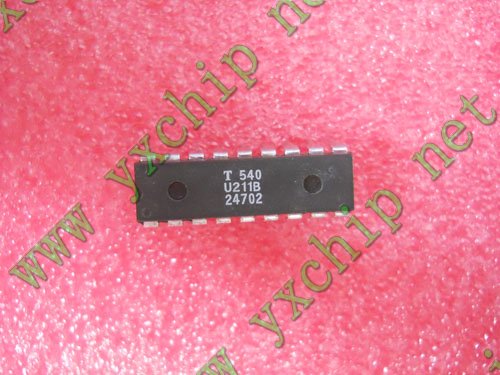

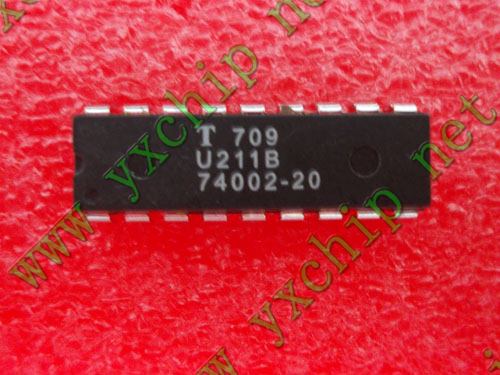

Part no.	U211B
Packge/Case	DIP18
Manutacturer	TFK
Description	TELEFUNK ELECTRONIC CREATIVE TECHNOLOGIEN U2200B-FP
Datasheet	Check Datasheet

1、概述

u211B 是一块电动机调速电路，通过监测交流电源的相位来输出控制信号。u211B

内部集成了一个频率/ 电压转换器和一个放大器形成一个转速控制的闭环系统，可应用在

需要稳定转速的调速电机中。除此之外，u211B 还集成了负载限制、电源检测和软启

动等功能，可以实现交流电机控制系统。其特点如下：

● 静态电流小（≤3mA ）

● 内置频压（frequency to voltage ）转换电路

● 平衡的负载限制特性

● 优化的软启动功能

● 转速监测、短路保护

● 自动再触发功能

● 触发脉冲典型值 155mA

● 电压和电流的同步监测

● 内置电源监测模块

● 封装形式：SOP16

$ 2.70 (USD)/PCS

$ 3.70 (USD)/PCS

$ 3.00 (USD)/PCS

$ 3.70 (USD)/PCS

$ 0.95 (USD)/PCS

$ 2.53 (USD)/PCS
